Module 6: BLE Device Manager Training

Audience: Technical Staff, Distributors Prerequisite: Module 1 (Getting Started)

---

Learning Objectives

By the end of this module, trainees will be able to:

• Log in and access the BLE Device Manager
• Scan for and connect to OVES devices via Bluetooth
• Navigate all six service tabs in Assets (ATT, CMD, STS, DTA, DIA, HB)
• Read values from a device and copy them
• Write activation codes and configuration changes via the CMD tab
• Trigger a heartbeat to send device data to the server
• Use My Devices to generate and apply activation codes
• Use Retrieve Last Code to re-apply interrupted activations

---

Flow Diagram -- Assets (BLE Devices)

The diagnostic flow for technical staff using the Assets tool:

flowchart TD
    A[Open OvApp] --> B[Select BLE Device Manager]
    B --> C[Login Required]
    C --> D{Choose Area}

    D -->|Assets| E[BLE Devices Screen]
    E --> F[Bluetooth Scan for Nearby Devices]
    F --> G{Connection Method}
    G -->|Tap Device| H[Connect]
    G -->|Search by Name| H
    G -->|Scan QR Code| H

    H --> I[Device Connected<br>Shows OPID, Image, MAC]
    I --> J{Select Service Tab}

    J -->|ATT| K["ATT Tab<br>Serial, Firmware, Model"]
    J -->|CMD| L["CMD Tab<br>Read/Write Commands"]
    J -->|STS| M["STS Tab<br>Days Remaining, State"]
    J -->|DTA| N["DTA Tab<br>Voltage, Capacity, Energy"]
    J -->|DIA| O["DIA Tab<br>Cell Voltages, Temps"]
    J -->|HB| P["HB Tab<br>Collect All → Send via MQTT"]

    K --> Q[Read Value → Copy to Clipboard]
    L --> R[Read / Write / Copy Values]
    M --> Q
    N --> Q
    O --> Q
    P --> S[Trigger Heartbeat → MQTT Publish]

    R --> T[Written Values Persist Locally]

    style A fill:#4CAF50,color:#fff
    style I fill:#2196F3,color:#fff
    style K fill:#FF9800,color:#fff
    style L fill:#f44336,color:#fff
    style M fill:#FF9800,color:#fff
    style N fill:#FF9800,color:#fff
    style O fill:#FF9800,color:#fff
    style P fill:#9C27B0,color:#fff

Flow Diagram -- My Devices (Activation)

The streamlined activation flow for distributors:

flowchart TD
    A[My Devices Screen] --> B[Bluetooth Scan]
    B --> C[Select & Connect to Device]
    C --> D[Activation Screen<br>Image, Name, MAC, Signal]
    D --> E[Select Duration<br>e.g. 1 day, 3 days]
    E --> F{Action}

    F -->|Generate Code| G[Request New Code from Server]
    G --> H[Code Auto-Written to Device via BLE]
    F -->|Retrieve Last Code| I[Fetch Previous Code from Server]
    I --> H

    H --> J{Verify}
    J -->|Read Back| K[Read CMD Value from Device]
    J -->|Copy| L[Copy Code to Clipboard]
    J -->|Manual Write| M[Write Custom Value]

    K --> N[Confirmed ✓]
    N --> O[Tap Disconnect When Done]

    style A fill:#4CAF50,color:#fff
    style D fill:#2196F3,color:#fff
    style H fill:#FF9800,color:#fff
    style N fill:#4CAF50,color:#fff

---

Visual Reference

Assets -- Device List & Service Tabs

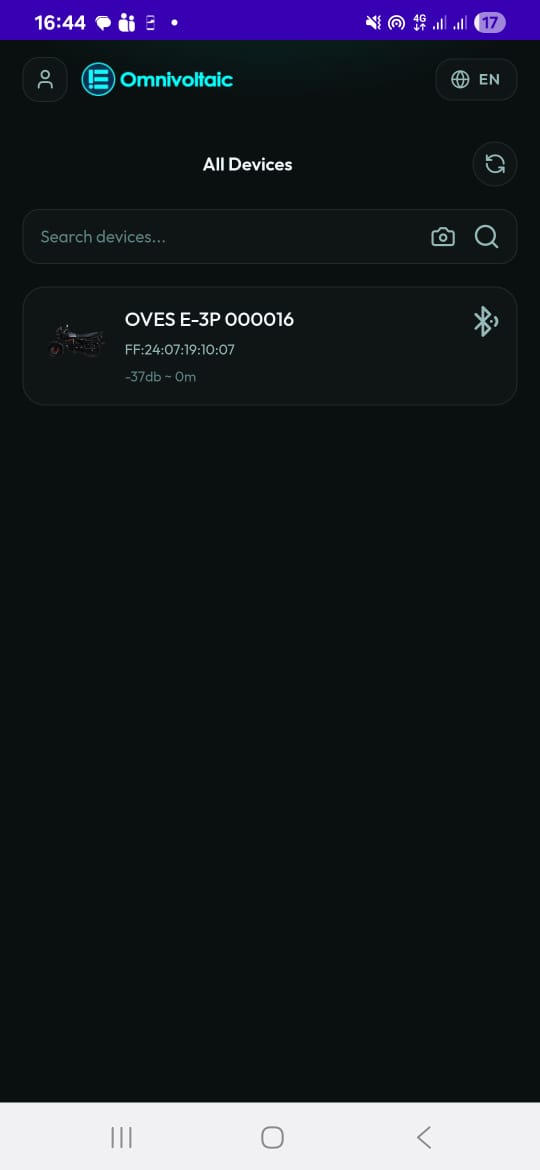

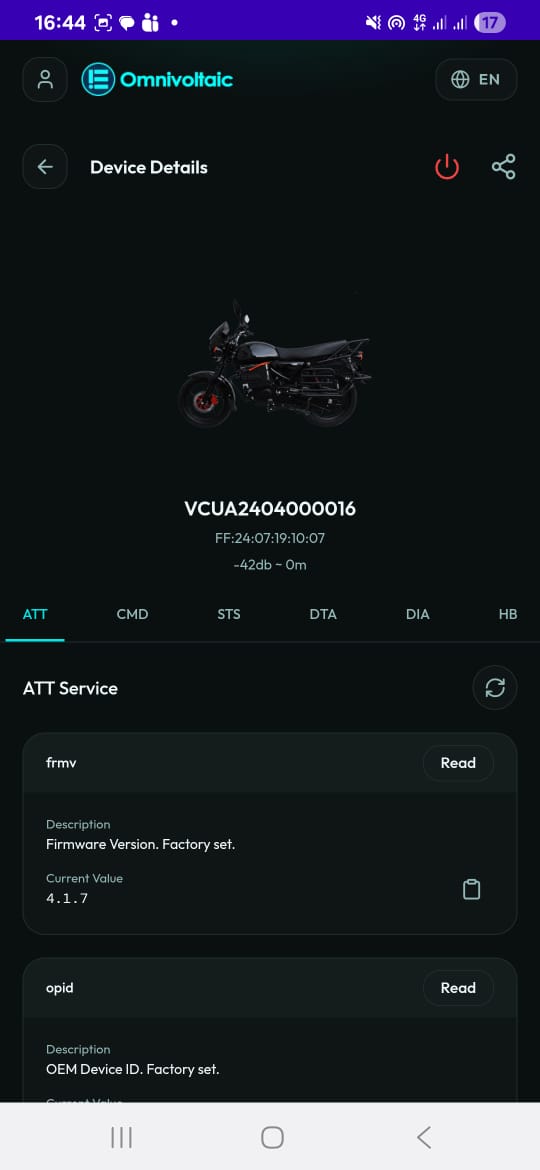

Device List	ATT Tab
Nearby devices with name, signal, and MAC	Device identity: serial, firmware, model

CMD Tab	STS Tab
Read/write commands and activation codes	Status: days remaining, activation state

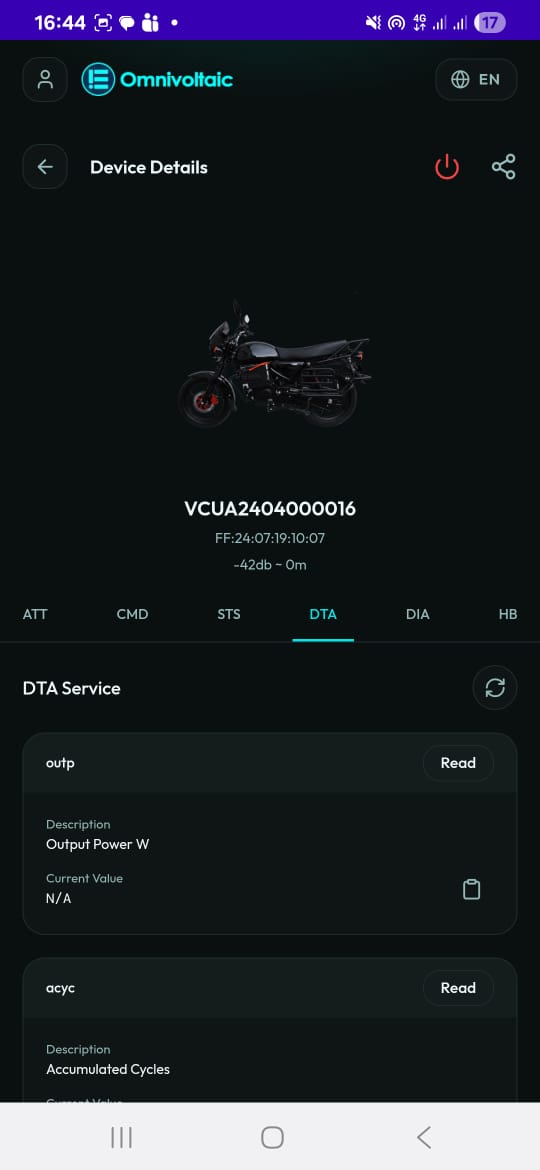

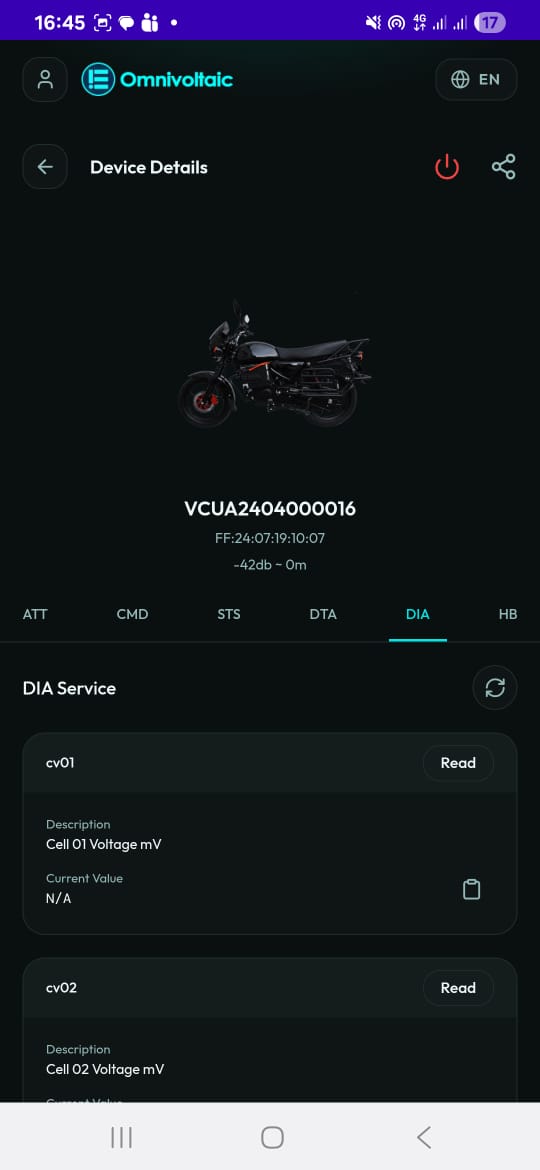

DTA Tab	DIA Tab
Battery data: voltage, capacity, energy	Diagnostics: cell voltages, temperatures

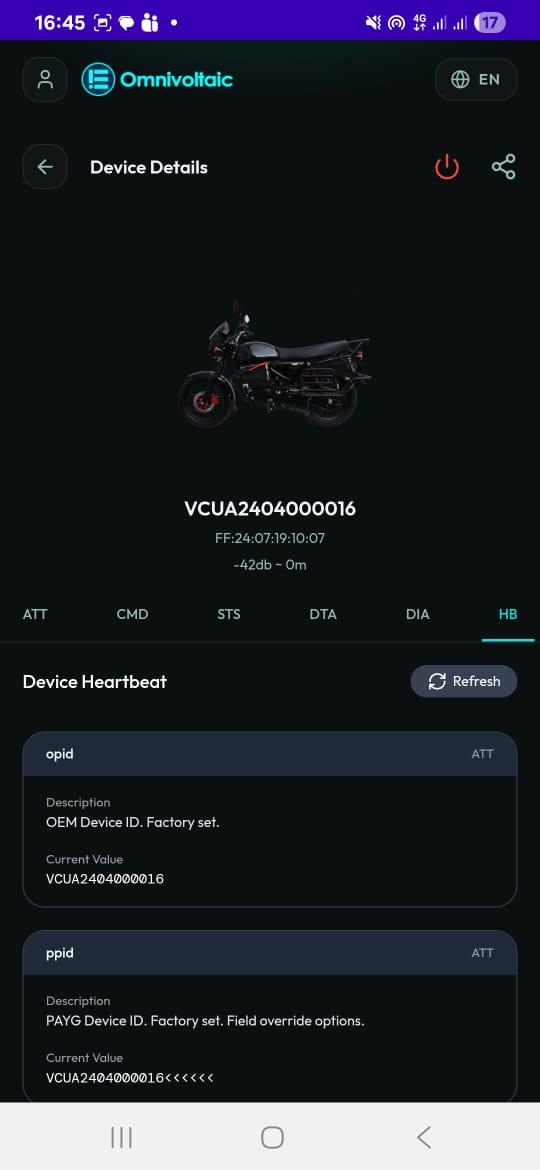

HB Tab
Heartbeat: sends all data to server via MQTT

My Devices -- Activation

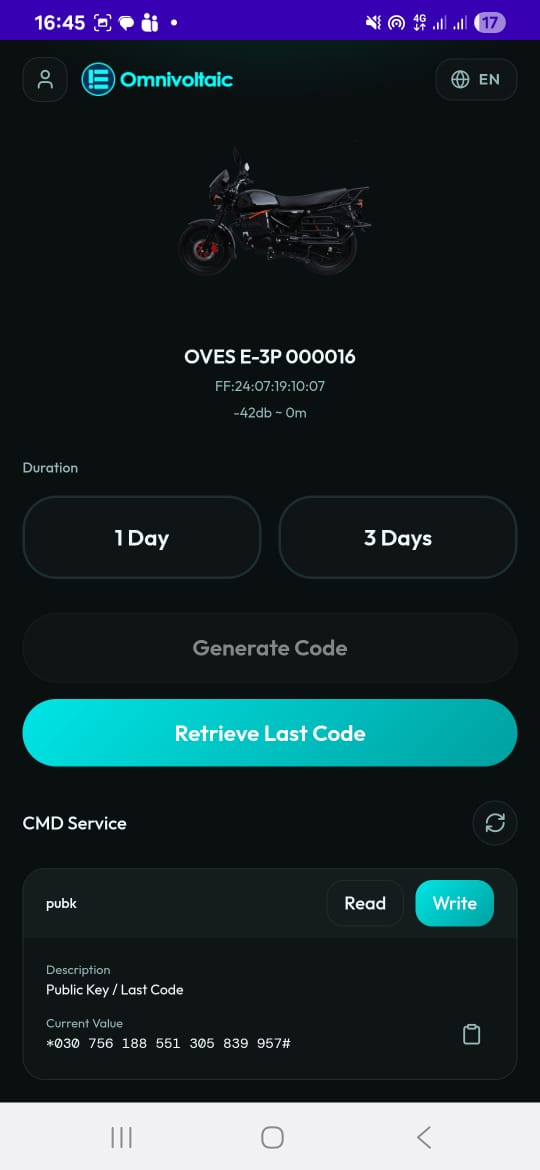

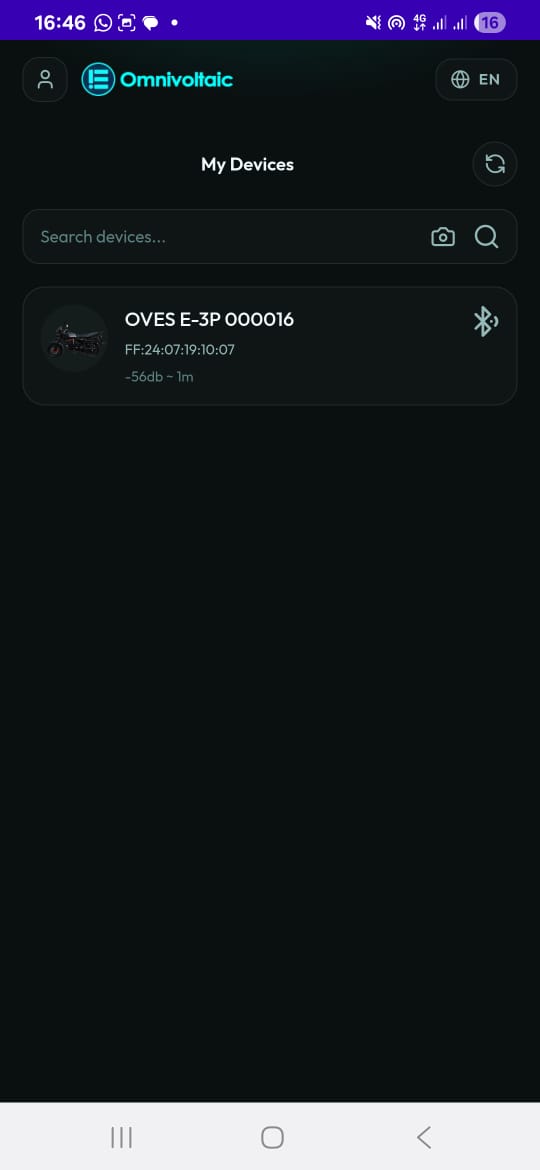

Overview	Activation Screen
Device list in My Devices area	Duration selection and activation buttons

---

Lesson 6.1 -- Login & Overview (5 min)

Key Points

• A login is required to access the BLE Device Manager
• Two areas are available:
  • Assets (BLE Devices) -- full diagnostic tool for technical staff
  • My Devices -- streamlined activation tool for distributors

Hands-On Exercise

1. Open OvApp and select the BLE Device Manager role
2. Log in with your credentials
3. Note the two areas available

---

Lesson 6.2 -- Scanning & Connecting (5 min)

Key Points

• Both areas share the same connection flow
• Your phone scans for nearby OVES devices via Bluetooth
• Devices are listed with name, image, signal strength, and MAC address
• Connect by: tapping the device, searching by name, or scanning its QR code

Hands-On Exercise

1. Wait for the Bluetooth scan to complete
2. Find your target device in the list
3. Connect using each method: tap, search, QR scan

---

Lesson 6.3 -- Assets: Service Tabs (20 min)

Key Points

Once connected in Assets, you see six service tabs:

Tab	Purpose	Read	Write
ATT	Device identity (serial numbers, firmware, model)	Yes	No
CMD	Commands (activation codes, APN settings, config)	Yes	Yes
STS	Status (days remaining, activation state)	Yes	No
DTA	Battery data (voltage, capacity, energy in kWh)	Yes	No
DIA	Diagnostics (individual cell voltages, temperatures)	Yes	No
HB	Heartbeat (sends all data to server via MQTT)	Yes	No

• You can read values on any tab and copy them to clipboard
• The CMD tab also allows writing values (e.g. activation tokens)
• Written values persist locally so you can see what you last sent
• Automatic MQTT publishing happens whenever a service read completes

Hands-On Exercise

1. Connect to a device and go to the ATT tab -- read and copy the serial number
2. Go to the STS tab -- check the days remaining
3. Go to the DTA tab -- read the battery voltage and energy
4. Go to the DIA tab -- review cell voltages and temperatures
5. Go to the CMD tab -- read the current value, then write a test activation code
6. Go to the HB tab -- trigger a heartbeat and confirm data is sent

Common Issues

Issue	Solution
BLE connection drops	Reconnect; move closer to the device
Read times out	Retry the read; re-scan if needed
Write appears to fail	Read the CMD value back to confirm

---

Lesson 6.4 -- My Devices: Activation (15 min)

Key Points

• Designed for quick device activation without navigating raw service data
• After connecting, you see: device info, duration selector, and two action buttons

Actions:

Action	What It Does
Generate Code	Requests a new activation code from the server for the chosen duration, automatically writes it to the device
Retrieve Last Code	Fetches the most recent code generated for this device and writes it again (useful if a previous write was interrupted)

• Below the buttons: CMD value display, manual read, copy, and write options
• Always use the Disconnect button when done

Hands-On Exercise

1. Switch to My Devices and connect to a device
2. Select a duration (e.g. 1 day)
3. Tap Generate Code -- observe the code being written to the device
4. Disconnect and reconnect
5. Tap Retrieve Last Code -- observe the same code being re-applied
6. Use the Read button to verify the code on the device
7. Tap Disconnect when done

---

Use Cases

Use Case 1: Technician Inspects a Device Reported as Faulty

Scenario: A customer reports that their device stopped working. A technician visits to diagnose the issue using Assets.

Steps:

1. Technician opens BLE Device Manager and logs in
2. Navigates to Assets and scans for the device
3. Connects to the device via QR code scan
4. Checks STS tab → "Days Remaining: 0" (activation expired)
5. Checks DTA tab → battery voltage is normal (not a hardware issue)
6. Checks DIA tab → cell voltages are balanced (no cell failure)
7. Goes to CMD tab → writes a new activation code
8. Triggers HB → confirms data is sent to the server

Expected Outcome: Technician identifies that the device simply needs reactivation, not repair. Activation code is written and verified.

Use Case 2: Distributor Activates New Devices in Bulk

Scenario: A distributor receives 10 new devices and needs to activate each one for 30 days before delivery to customers.

Steps:

1. Distributor opens BLE Device Manager → My Devices
2. Connects to the first device (tap from scan list)
3. Selects 30 days as the duration
4. Taps Generate Code → code is generated and written to the device
5. Verifies by tapping Read → code matches
6. Taps Disconnect
7. Repeats for each of the remaining 9 devices

Expected Outcome: All 10 devices are activated for 30 days and ready for customer delivery.

Use Case 3: Activation Write Interrupted -- Retrieve Last Code

Scenario: During activation, the Bluetooth connection drops before the code was fully written. The distributor needs to re-apply the same code.

Steps:

1. Distributor connects to the device in My Devices
2. Taps Generate Code → BLE connection drops mid-write
3. Reconnects to the device
4. Taps Retrieve Last Code (instead of Generate Code)
5. The previously generated code is fetched and written successfully
6. Taps Read to confirm the code is on the device

Expected Outcome: The same activation code is re-applied without generating a duplicate code.

Use Case 4: Technician Reads Battery Health for Warranty Claim

Scenario: A customer claims their battery is defective within the warranty period. The technician needs to gather diagnostic data.

Steps:

1. Technician connects to the device via Assets
2. Goes to ATT tab → copies the serial number and firmware version
3. Goes to DTA tab → records voltage (3.2V) and capacity
4. Goes to DIA tab → notices Cell 3 voltage is significantly lower than other cells
5. Triggers HB → sends all readings to the server for the warranty record
6. Reports findings: Cell 3 imbalance suggests a manufacturing defect

Expected Outcome: Diagnostic data is collected, sent to the server, and the technician has evidence for the warranty claim.

---

Knowledge Check

1. What is the difference between Assets and My Devices?
2. Name the six service tabs in Assets and what each shows.
3. Which tab allows you to write values to a device?
4. What happens when you trigger a heartbeat?
5. When would you use Retrieve Last Code instead of Generate Code?
6. What happens automatically when you read a value from any service tab?
7. Why should you tap Disconnect when you're done with a device?

---

Assessment Rubric -- Module 6

Criteria	Expert (4)	Competent (3)	Developing (2)	Novice (1)
Login & Navigation	Logs in, navigates both areas, explains the difference between Assets and My Devices	Logs in and finds both areas	Logs in but confused about which area to use	Cannot log in or find the BLE Device Manager
Device Connection	Connects using all three methods, handles scan failures	Connects to a device reliably	Connects but needs a retry or guidance	Cannot establish a Bluetooth connection
Assets: Reading Tabs	Reads all 6 tabs, explains each service's purpose, copies values	Reads at least 4 tabs successfully	Reads 2-3 tabs but skips or misunderstands others	Cannot navigate or read from service tabs
Assets: Writing (CMD)	Writes values, reads them back, explains persistence and MQTT	Writes a value to CMD and verifies	Writes a value but doesn't verify	Cannot write to the CMD tab
Assets: Heartbeat	Triggers HB, explains MQTT publishing, verifies server received data	Triggers a heartbeat successfully	Knows about HB but hasn't triggered one	Unaware of the heartbeat function
My Devices: Activation	Generates code, retrieves last code, reads back, explains both flows	Generates and applies an activation code	Generates a code but doesn't verify	Cannot generate or apply an activation code
Troubleshooting	Handles BLE drops, re-applies codes, diagnoses device issues	Resolves at least one common issue	Recognizes an issue but needs help resolving	Does not recognize when something went wrong
Knowledge Check	Answers all 7 questions correctly	Answers 5-6 correctly	Answers 3-4 correctly	Answers fewer than 3 correctly

Pass: Average score of 3.0 or above across all criteria.
